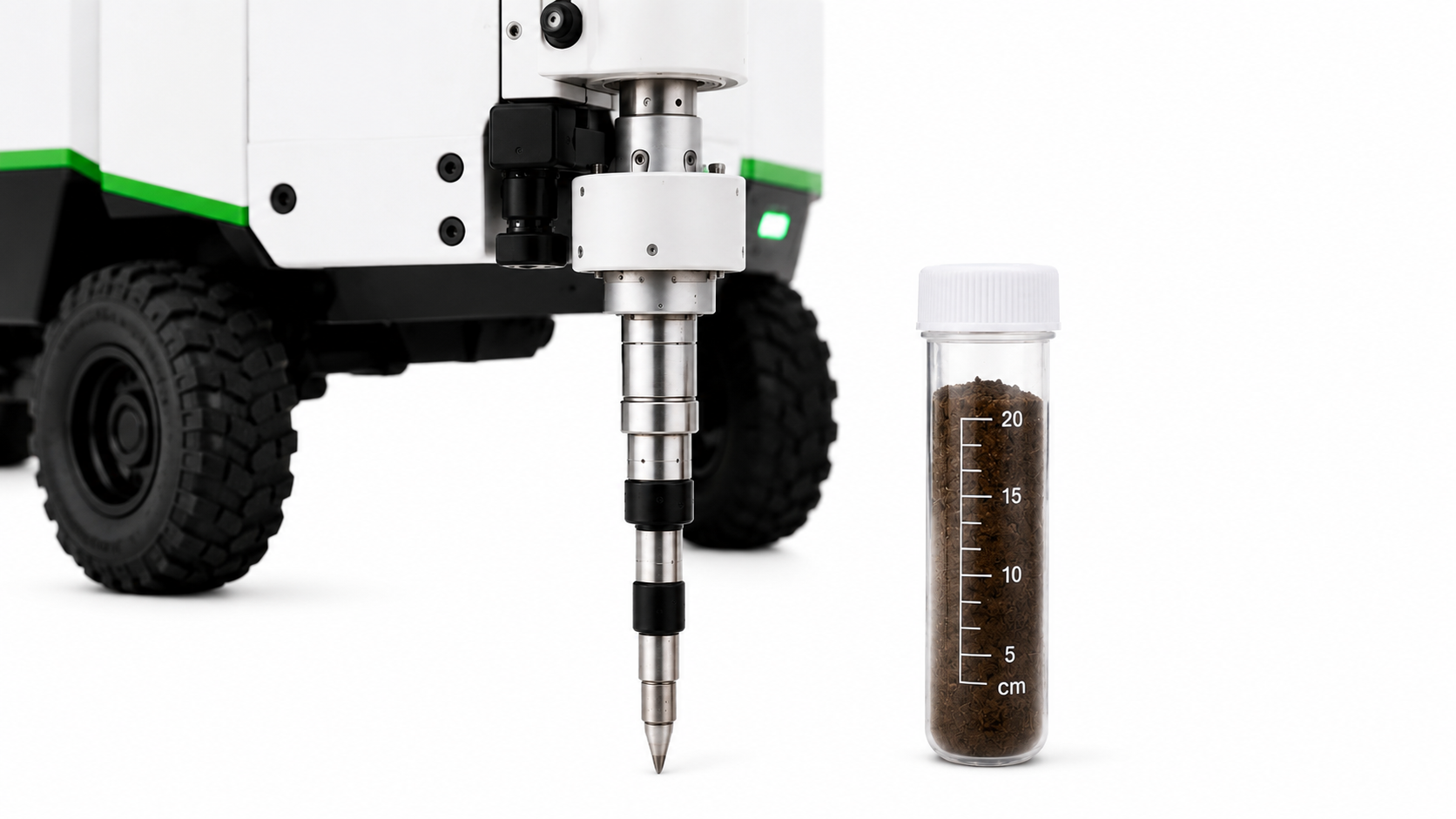

FieldScout autonomous agricultural robot with integrated soil sampling system for automated field data collection and precision soil analysis.
Features & Benefits
Core capabilities and practical value for deployment.
✓
Autonomous path planning and navigation
✓
Integrated sensors and real-time monitoring
✓
Wireless data transmission
✓
Rugged design for field conditions
✓
Long battery life and solar-ready system
Included Capabilities
Customer Benefits
Technical Specifications
Detailed technical data for evaluation and system integration.
Technical Specifications
| Sampling Depth | 0–20 cm (customizable) |
|---|---|
| Sampling Diameter | 25 mm |
| Navigation | Autonomous GPS + LiDAR + IMU |
| Accuracy | ±2 cm |
| Communication | 4G / Wi-Fi / LoRa — |
| Data Output | pH, Nutrients, Moisture, EC, GPS — |
| Power Supply | Rechargeable Battery 8–10 hrs |
| Dimensions | 120 × 80 × 100 cm |
| Weight | ~120 kg |
| Operating Temperature | -10 to 50 °C |
| Protection Rating | IP65 — |
Applications
Select an image to view the full-resolution version.
Application image currently unavailable
Precision Agriculture
High-precision soil sampling and field data collection for site-specific crop management.
Application image currently unavailable

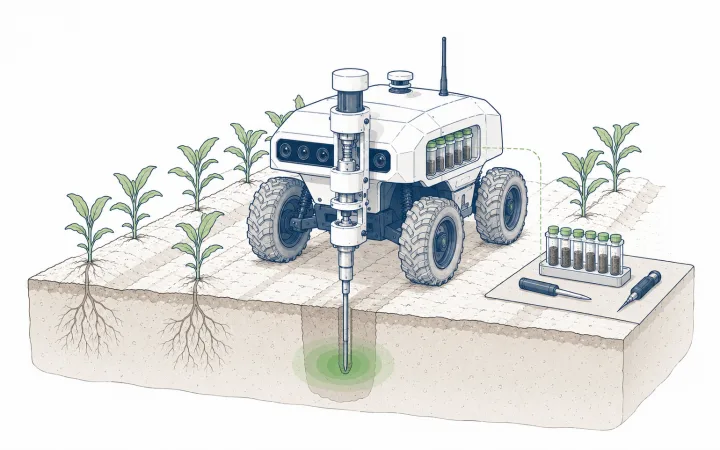

Research & Development
Autonomous sampling for agricultural experiments, trials and research programs.
Application image currently unavailable

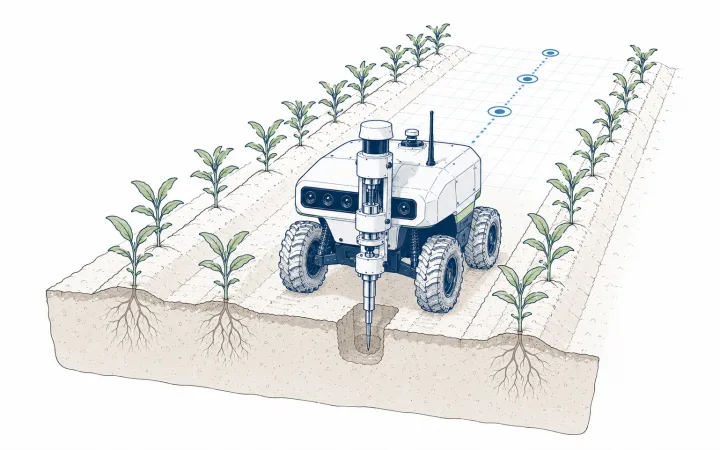

Soil Health Monitoring
Collection of soil measurements including moisture, pH, EC and nutrient-related data.
Application image currently unavailable
Fertilizer Management
Soil data collection to support informed fertilizer and nutrient management decisions.
Application image currently unavailable
Environmental Studies
Automated field sampling and georeferenced environmental data collection.
Available Configurations
Configuration-specific availability and pricing.
Standard Field Configuration
Autonomous soil-sampling configuration with GPS, LiDAR and IMU navigation, multi-depth sampling and wireless communication.
Quotation requiredDocumentation & Downloads
Firmware Releases
Version and hardware compatibility information for supported products.
1.0.0Initial production firmware release for the Auto Soil Sampling Robot. Supports autonomous field operation, soil sampling control, navigation sensors, sampling-depth management, sensor data acquisition and field data collection.
2026-08-28Auto Soil Sampling RobotstableSupported releaseSoftware, API & Developer Resources

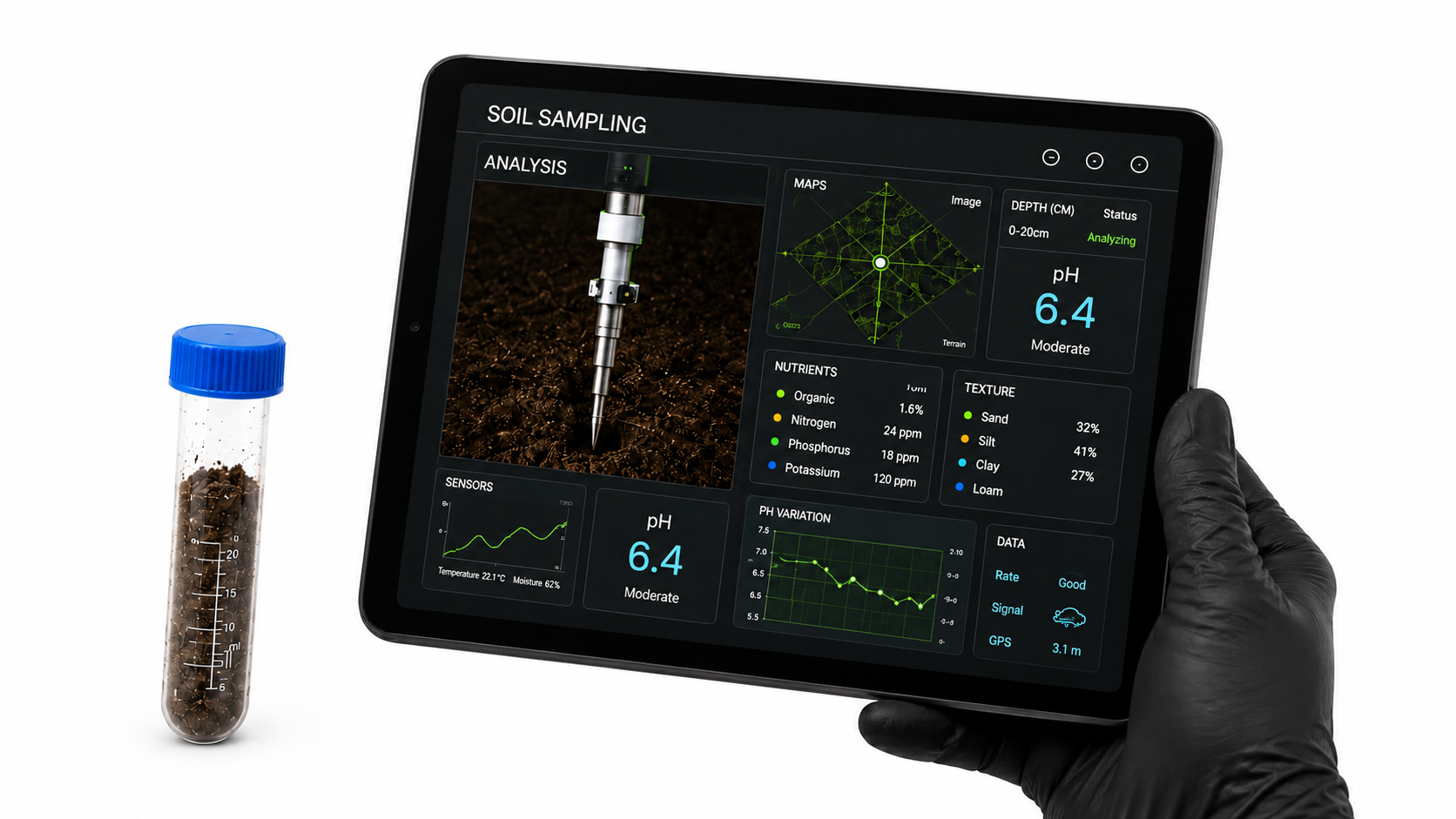

Auto Soil Sampling Robot – Soil Data Dashboard
Digital monitoring and data visualization resource for the Auto Soil Sampling Robot. Supports review of georeferenced soil sampling results, sampling locations, soil measurements and field data collected during autonomous sampling operations.
Open ResourceCompatibility & Ecosystem
Products, accessories, gateways and software designed to work with this product.
Compatibility information is being prepared.
Please contact Adaptive AgroTech to confirm accessories, gateways, software, or integration requirements for this product.
Please contact Adaptive AgroTech to confirm accessories, gateways, software, or integration requirements for this product.
Scientific Publications & Research
Publisher-hosted papers linked through DOI and publisher URLs.
RESEARCH REFERENCERead the publisher-hosted paper
Featured Publication
Internet of robotic things with a local LoRa network for teleoperation of an agricultural mobile robot using a digital shadow
Adaptive AgroTech Team
Discover Applied Sciences, 2026
This study investigates the use of a local LoRa-based wireless network and a digital shadow for supervising and teleoperating agricultural mobile robots in complex field environments. The system combines GPS-based navigation, collision avoidance sensors, LoRa transmitters and repeaters, a digital representation of the robot, and a graphical user interface for remote supervision. The research evaluates long-range communication and robot control for agricultural field operations, with particular attention to communication reliability, latency, stability, and situation awareness. The results demonstrate the potential of LoRa-based connectivity for remote agricultural robot supervision while identifying communication range and latency as important challenges.
Publisher PageTechnical Support
Support for product selection, deployment, integration and continued operation.
Discuss your deployment
Share your application, sensing requirements, environment and expected integration scope with our engineering team.
Contact Adaptive AgroTechSupport Options
- Installation and commissioning
- Calibration and repair
- Remote diagnostics
- Training and integration
Can I use my own sensors?
Yes. The Auto Soil Sampling Robot is designed with a modular architecture and can be configured for different sensing requirements. Compatible sensors can be integrated for soil, environmental and agricultural measurements, subject to hardware, communication and software compatibility.
What soil sampling depth can the robot reach?
The standard sampling depth is 0–20 cm and can be customized for specific applications. The multi-depth sampling mechanism allows soil samples to be collected from defined depths for precision agriculture, research and soil health assessment.
How does the robot navigate to sampling points?
The robot uses autonomous navigation based on GPS, LiDAR and IMU technologies. Sampling missions can be planned by defining target locations, after which the robot autonomously navigates to the designated sampling points and performs soil collection.
What type of soil data can be collected?
The system can support soil-data workflows involving pH, nutrients, moisture, electrical conductivity (EC) and GPS-referenced measurements. The collected data can be used for soil health assessment, precision agriculture and site-specific management decisions.
How does the robot communicate and transmit field data?
The robot supports wireless communication through 4G, Wi-Fi and LoRa. This enables field data transmission and integration with remote monitoring or agricultural data-management workflows, depending on the deployed configuration.
What applications is the Auto Soil Sampling Robot designed for?
The robot is designed for precision agriculture, agricultural research and development, soil health monitoring, fertilizer management and environmental studies. It can be deployed for systematic soil sampling, georeferenced field measurements and data-driven agricultural decision making.
Project Sales
Request a Formal Quotation
Add the required product configuration to your cart, then send the complete selection to Adaptive AgroTech sales. Custom sensors, quantities, installation, training and integration requirements can all be included.
Build your quotation from the cart
Your selected configuration and quantity will be carried into the quotation request automatically.
Open Cart & Request Quote
