Analog capacitive sensing technology
Analog capacitive sensing technology for leaf-surface wetness measurement.

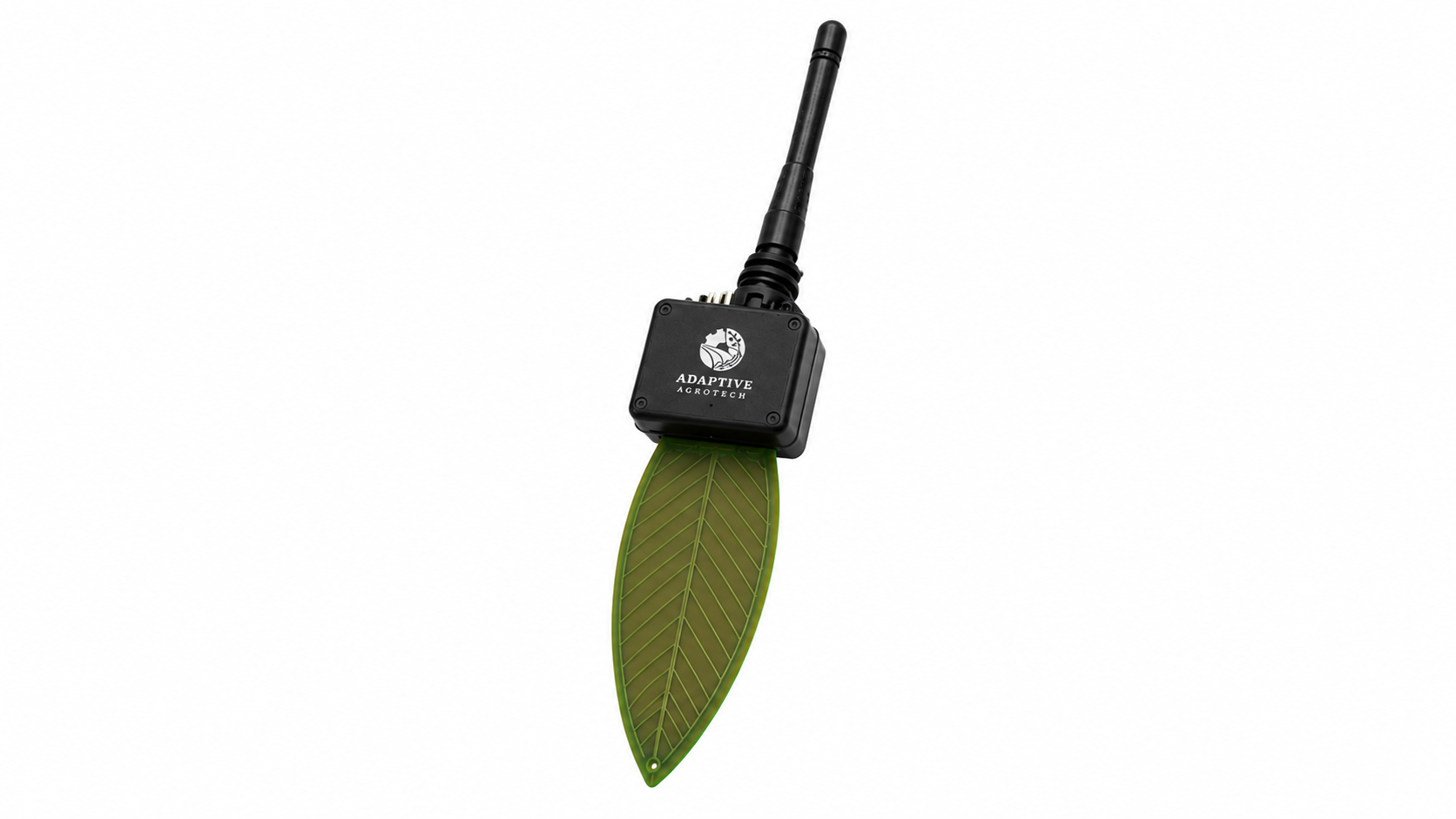

LoRaWAN Multi-Channel Leaf Wetness Sensor – Front View
Features & Benefits
Core capabilities and practical value for deployment.
✓
0–100% leaf wetness detection
Detects leaf wetness from 0–100% after calibration.
✓
Multi-channel support
Supports multi-channel deployments with up to 8 sensors.
✓
LoRaWAN & IoT compatibility
Compatible with LoRaWAN and IoT data loggers for connected agricultural monitoring.
✓
Low power consumption
Typical sensor current is less than 2 mA.
✓
Corrosion resistant & waterproof
Designed for outdoor agricultural use with an IP67-rated sensor-head enclosure.
✓
Compact and lightweight
Approximate probe dimensions are 88 × 35 × 12 mm.
✓
Easy installation
Supports tie-wrap, clip or custom mounting arrangements.
Included Capabilities
Customer Benefits
Technical Specifications
Detailed technical data for evaluation and system integration.
Technical Specifications
| Sensor Type | Analog Capacitive Leaf Wetness Probe |
|---|---|
| Measurement Parameter | Leaf Surface Wetness |
| Measurement Range | 0–100% Leaf Wetness % |
| Output Signal | Analog Voltage 0–3.3 V |
| Supply Voltage | 3.3 VDC V |
| Typical Current | <2 mA |
| Operating Temperature | -20 to +60 °C |
| Operating Humidity | 0–100 % RH |
| Dimensions | Approx. 88 × 35 × 12 mm |
| Cable Length | Standard 2 (customizable) m |
| Enclosure | IP67 Rated |
| Mounting | Tie-wrap / Clip / Custom Mount |
| Number of Sensors | Up to 8 channels |
Connectivity & Integration
| Communication Protocol | LoRaWAN |
|---|---|
| Sensor Channels | Multi-channel up to 8 |
| Data Transmission | Wireless |
| Sensor Interface | Analog Capacitive |
| Data Integration | LoRaWAN IoT Data Logger |
| Monitoring | Real-time Leaf Wetness |
| CompatibilityCompatibility | LoRaWAN & IoT Data Loggers |
| Deployment | Outdoor Agricultural Monitoring |
Applications
Select an image to view the full-resolution version.
Vineyards
Monitor leaf wetness to manage powdery mildew, downy mildew and botrytis risk.
Vegetable Crops
Monitor tomatoes, cucumbers, peppers and leafy greens for fungal-disease risk and smarter crop protection.
Fruit Orchards
Use leaf wetness monitoring in apples, citrus, berries and stone fruits for smarter crop protection.
Research & Weather Stations
Support agricultural research, trials and microclimate monitoring with continuous leaf wetness observations.
Available Configurations
Configuration-specific availability and pricing.
Standard 8-Channel Leaf Wetness Sensor
LoRaWAN multi-channel leaf wetness monitoring system with support for up to 8 analog capacitive leaf wetness probes, designed for real-time crop protection, disease-risk monitoring and precision agriculture applications.
Quotation requiredDocumentation & Downloads
Firmware Releases
Version and hardware compatibility information for supported products.
1.0.0Initial firmware release for the LoRaWAN Multi-Channel Leaf Wetness Sensor system. Supports multi-channel leaf wetness data acquisition and LoRaWAN-based telemetry for agricultural monitoring applications.
2026-09-01AAT-LEAF-WETNESSstableSupported releaseSoftware, API & Developer Resources
LoRaWAN Leaf Wetness Data Decoder
Software resource for decoding and interpreting LoRaWAN data from Adaptive AgroTech multi-channel leaf wetness sensors, including leaf wetness measurements from connected analog capacitive probes for crop monitoring and disease-risk analysis.
Open ResourceCompatibility & Ecosystem
Products, accessories, gateways and software designed to work with this product.
Compatibility information is being prepared.
Please contact Adaptive AgroTech to confirm accessories, gateways, software, or integration requirements for this product.
Please contact Adaptive AgroTech to confirm accessories, gateways, software, or integration requirements for this product.
Scientific Publications & Research
Publisher-hosted papers linked through DOI and publisher URLs.
FIRST-PAGE PREVIEW
Featured Publication
LoRaWAN Multi-Channel Leaf Wetness Sensing for Precision Crop Protection
Adaptive Agrotech Research Team
Adaptive Agrotech Technical Research, 2026
The LoRaWAN Multi-Channel Leaf Wetness Sensor is designed for continuous measurement of leaf-surface wetness in agricultural environments. Multi-channel sensing enables monitoring of multiple plant locations or crop zones, while LoRaWAN connectivity supports long-range wireless transmission of environmental data. Leaf wetness information can support disease-risk assessment, irrigation management, crop protection and precision agriculture research.
Publisher PageTechnical Support
Support for product selection, deployment, integration and continued operation.
Discuss your deployment
Share your application, sensing requirements, environment and expected integration scope with our engineering team.
Contact Adaptive AgroTechSupport Options
- Installation and commissioning
- Calibration and repair
- Remote diagnostics
- Training and integration
What does the Leaf Wetness Sensor measure?
It measures moisture on leaf surfaces and provides a 0–100% leaf wetness output after calibration.
How many sensors can be used in a multi-channel configuration?
The brochure states multi-channel support for up to 8 sensors.
What signal does the sensor provide?
The sensor provides an analog voltage output in the stated 0–3.3 V range.
Can it be integrated with LoRaWAN systems?
Yes. The brochure describes compatibility with LoRaWAN and IoT data loggers through the appropriate acquisition device.
