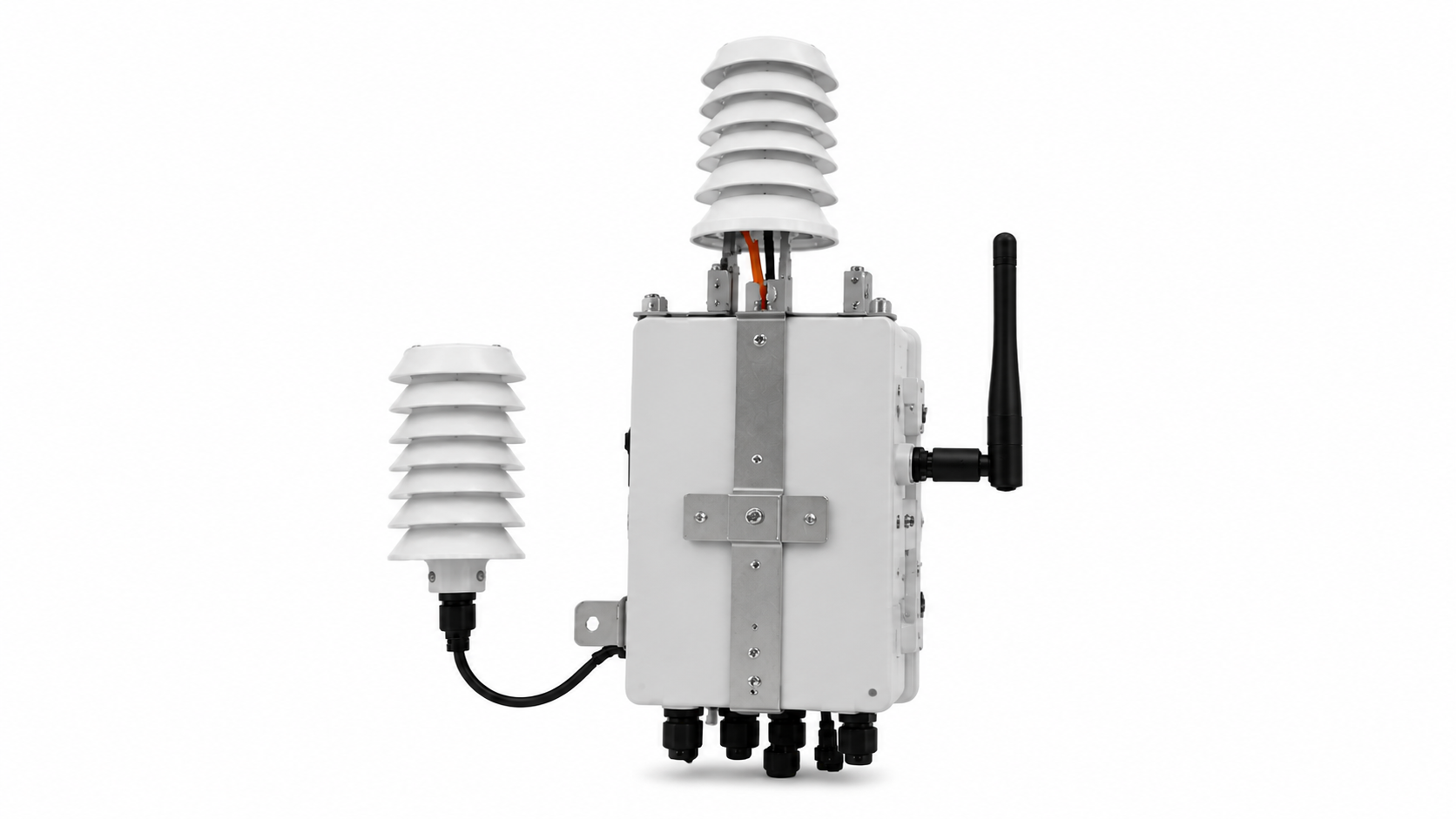

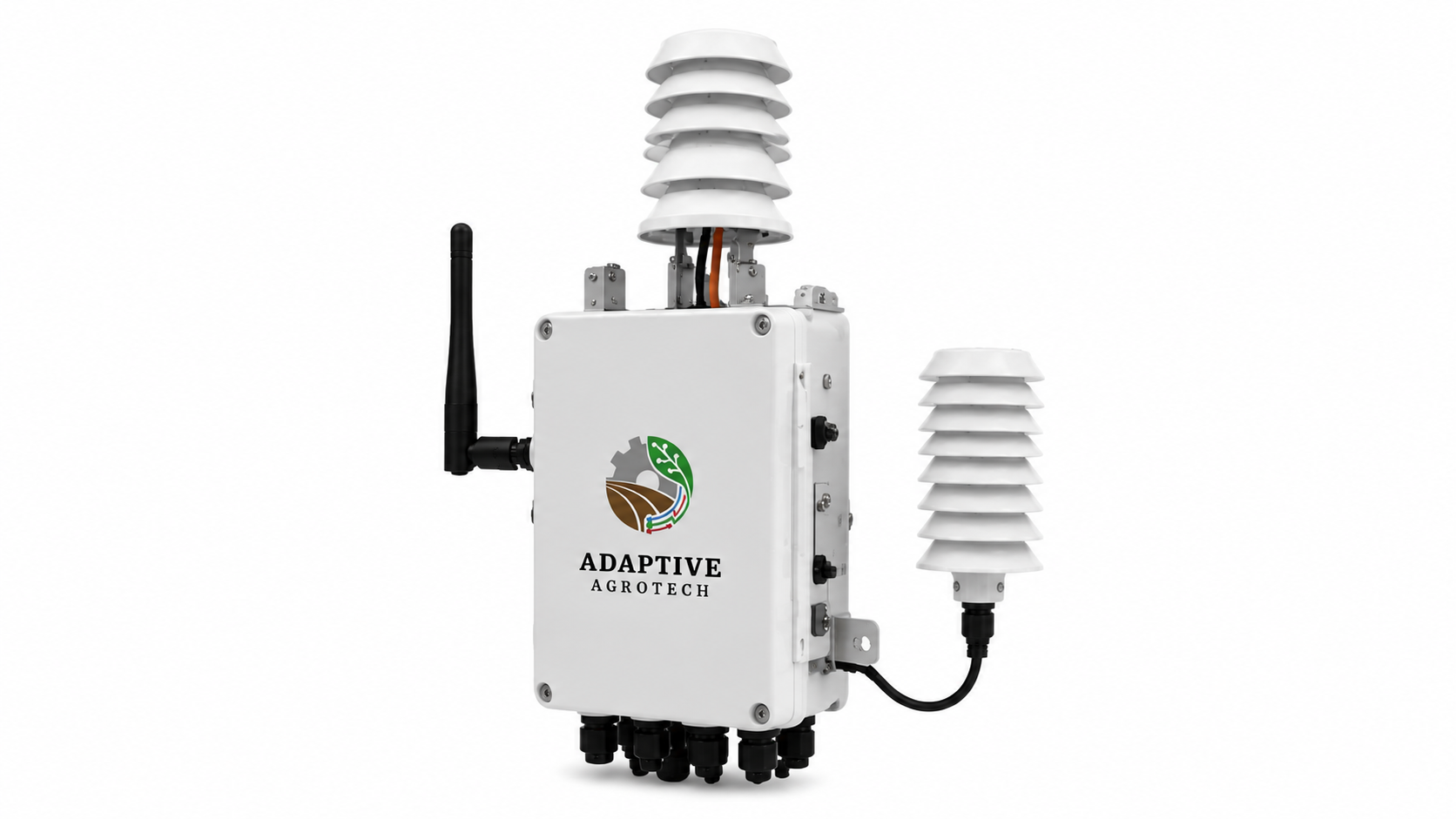

Multi-Channel LoRa WiFi Transmitter

Features & Benefits

Core capabilities and practical value for deployment.

✓

Multi-channel sensor connectivity

✓

LoRaWAN and WiFi communication

✓

Modular plug and sense interfaces

✓

Analog, digital, UART, I2C and CAN sensor support

✓

IP65 weatherproof enclosure

✓

Local data logging and remote configuration

✓

Industrial IoT ready architecture

Included Capabilities

Customer Benefits

Technical Specifications

Detailed technical data for evaluation and system integration.

Power Supply

Power Supply	9-24 VDC / Solar Compatible VDC

Communication

Communication	LoRaWAN (EU868/US915/AS923) + WiFi 2.4 GHz

Interfaces

Interfaces	Analog, Digital, UART, I2C, CAN (Modular)

Sensor Channels

Sensor Channels	Up to 16 Configurable channels

LoRa Range

LoRa Range	Up to 16 km (Line-of-sight) km

WiFi Range

WiFi Range	Up to 100 m

Data Rate

Data Rate	0.3 - 50 kbps

Protocols

Protocols Supported	Modbus RTU, MQTT, HTTP, JSON

Data Logging

Data Logging	SD Card up to 32 GB / Internal Memory GB

Operating Temperature

Operating Temperature	-20 to +60 °C

Enclosure Rating

Enclosure Rating	IP65 Weatherproof

Mounting

Mounting	Pole / Wall Mount

Dimensions

Dimensions	250 x 160 x 75 mm

Weight

Weight	850 g

Applications

Select an image to view the full-resolution version.

Precision Agriculture & Smart Farming

Collects and transmits data from multiple agricultural sensors for precision farming applications, enabling real-time monitoring and data-driven crop management.

Weather Stations & Environmental Monitoring

Provides reliable wireless communication for distributed weather monitoring stations and long-term environmental data collection.

Irrigation & Climate Control Systems

Supports intelligent irrigation and climate management by collecting sensor data and transmitting information from distributed agricultural systems.

Research & Field Trials

Enables researchers to deploy flexible sensor networks for agricultural experiments, field trials and environmental studies.

Industrial IoT Monitoring

Provides flexible wireless connectivity for industrial sensor networks, remote monitoring and IoT data transmission.

Smart Greenhouses

Supports smart greenhouse automation through wireless sensor connectivity and continuous environmental monitoring.

Available Configurations

Configuration-specific availability and pricing.

Configuration

Standard Configuration

Multi-Channel LoRa/WiFi Transmitter with IP65 enclosure, modular sensor interfaces, wireless communication and industrial-grade environmental monitoring capability.

Quotation required

Documentation & Downloads

Multi-Channel LoRa/WiFi Transmitter Product BrochureBrochure

1.0enpublicOpen

Firmware Releases

Version and hardware compatibility information for supported products.

3.1.0Improved wireless communication stability and enhanced sensor interface reliability. Updated firmware provides better LoRa/WiFi connectivity management, remote configuration support and improved long-term field operation.

2026-09-02Multi-Channel LoRa/WiFi Transmitter Rev. BstableSupported release

Software, API & Developer Resources

Api

LoRa/WiFi Communication Interface Documentation

Documentation for wireless communication interfaces, sensor integration, LoRaWAN connectivity and remote configuration capabilities of the Multi-Channel LoRa/WiFi Transmitter.

Available through technical support

Compatibility & Ecosystem

Products, accessories, gateways and software designed to work with this product.

Compatibility information is being prepared.
Please contact Adaptive AgroTech to confirm accessories, gateways, software, or integration requirements for this product.

Scientific Publications & Research

Publisher-hosted papers linked through DOI and publisher URLs.

RESEARCH REFERENCERead the publisher-hosted paper

Featured Publication

Wireless LoRa/WiFi Sensing for Digital Agriculture

R. R. Shamshiri, M. Behjati, C. Weltzien

Computers and Electronics in Agriculture, 2026

This research explores wireless sensing architectures for digital agriculture using LoRaWAN and WiFi communication technologies. The study evaluates reliable multi-sensor data acquisition, remote monitoring capabilities and scalable IoT-based solutions for agricultural environments. The results demonstrate the importance of flexible communication platforms for precision farming applications.

Publisher Page

Technical Support

Support for product selection, deployment, integration and continued operation.

Discuss your deployment

Share your application, sensing requirements, environment and expected integration scope with our engineering team.

Contact Adaptive AgroTech

Support Options

Installation and commissioning
Calibration and repair
Remote diagnostics
Training and integration

Can I use my own sensors with the Multi-Channel LoRa/WiFi Transmitter?

Yes. The transmitter supports modular sensor integration through multiple interfaces including analog, digital, UART, I2C and CAN connections, allowing integration with a wide range of compatible sensors.

What communication technologies are supported?

The device supports LoRaWAN and WiFi communication for reliable long-range wireless data transmission and flexible connectivity in agricultural and industrial environments.
