Modular sensor design
Add only the sensors required for a deployment.

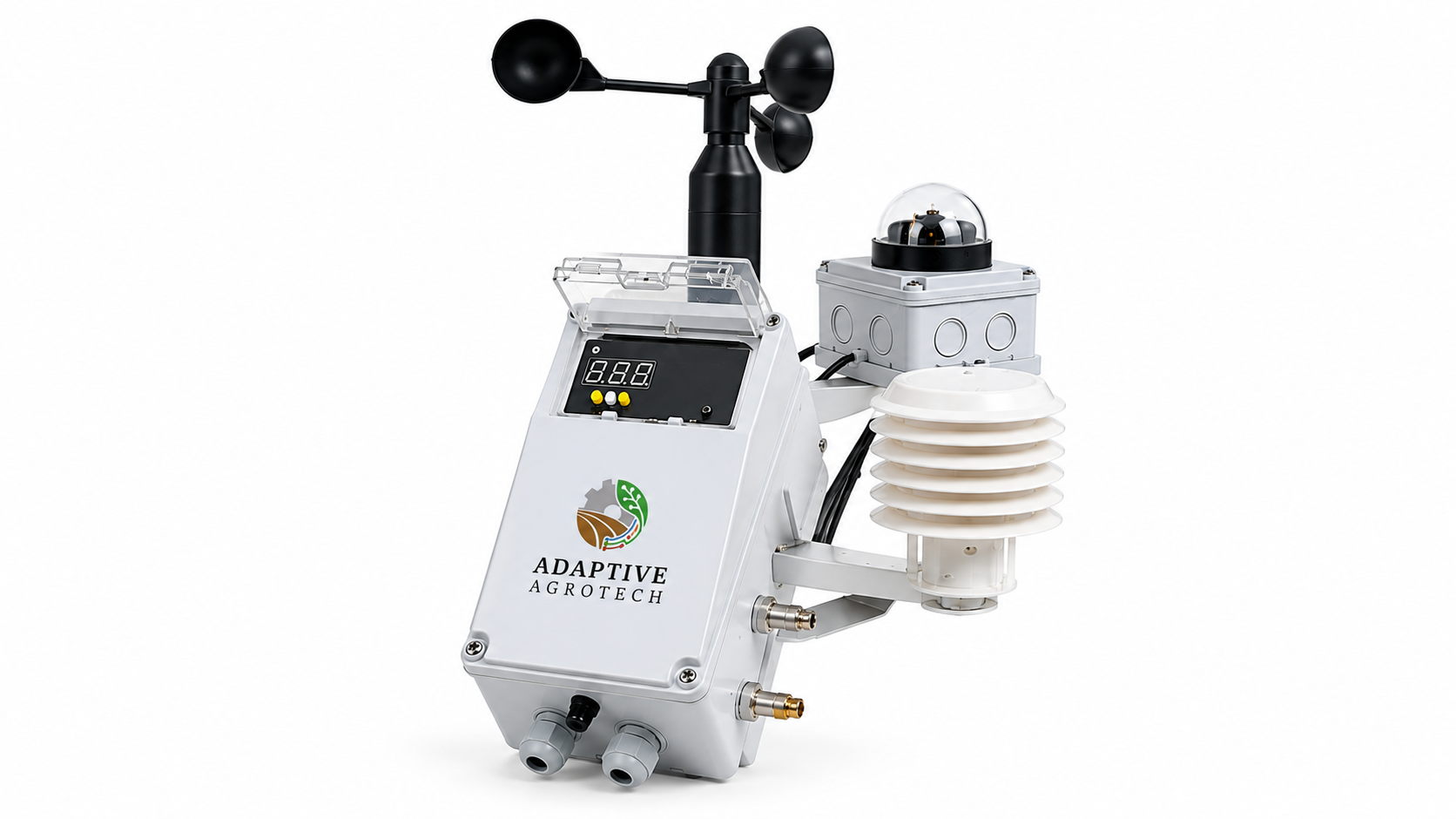

Modular Weather Station – Front View
Features & Benefits
Core capabilities and practical value for deployment.
✓
Broad sensor support
Temperature, humidity, rainfall, wind, solar radiation, pressure, soil sensors and more.
✓
Flexible communications
LoRaWAN, RS485/Modbus, SDI-12 and optional BLE.
✓
Internal logging
Onboard storage supports resilient data collection.
✓
Low-power monitoring
Suitable for remote and solar-powered deployments.
✓
Rugged enclosure
IP67 protection for outdoor use.
Included Capabilities
- Data acquisition
- System integration
Customer Benefits
- Reliable monitoring
- Scalable architecture
Technical Specifications
Detailed technical data for evaluation and system integration.
Controller & Interfaces
| MCU | STM32 |
|---|---|
| Interfaces | I²C, UART, SPI, Analog, Digital |
Communication
| Wireless | LoRaWAN EU868 / US915 |
|---|---|
| Wired | RS485/Modbus / SDI-12 |
| BLE | Optional |
Power & Environment
| Power supply | 9–30 V DC / Solar compatible |
|---|---|
| Operating temperature | -30 to +70 °C |
| Protection | IP67 weatherproof |
| Mounting | Pole / Wall / Tripod |
| Data storage | Onboard SD card |
| OTA update | Yes (via LoRaWAN) |
Applications
Select an image to view the full-resolution version.
Greenhouses
Greenhouses applications using Modular Weather Station.
Open Field Farming
Open Field Farming applications using Modular Weather Station.
Research & Universities
Research & Universities applications using Modular Weather Station.
AgriTech Solutions
AgriTech Solutions applications using Modular Weather Station.
Livestock Monitoring
Livestock Monitoring applications using Modular Weather Station.
Available Configurations
Configuration-specific availability and pricing.
Modular Weather Station Standard Configuration
Standard Modular Weather Station configuration; final sensor and accessory selection confirmed during quotation.
Quotation requiredDocumentation & Downloads
Firmware Releases
Version and hardware compatibility information for supported products.
1.0.0Initial firmware release for the Modular Weather Station platform. Supports modular environmental sensor acquisition, real-time monitoring, onboard SD card data logging, LoRaWAN communication and remote OTA firmware updates via LoRaWAN.
2026-09-06Modular Weather Station — AAT-MWS-001stableSupported releaseSoftware, API & Developer Resources
Adaptive AgroTech Web IoT Cloud Platform
Web-based IoT cloud platform for monitoring connected weather stations, viewing environmental measurements and managing deployed sensing devices remotely.
Available through technical supportCompatibility & Ecosystem
Products, accessories, gateways and software designed to work with this product.
LoRaWAN Gateway & Bridge
The Modular Weather Station supports LoRaWAN EU868 and US915 communication for remote environmental monitoring. It can connect through a LoRaWAN Gateway & Bridge to forward weather and sensor data to connected IoT monitoring and cloud systems.
View ProductMulti-Channel LoRa/WiFi Transmitter
The Modular Weather Station can be integrated into a broader wireless sensing architecture using LoRa or WiFi communication for transmitting environmental measurements and supporting connected agricultural monitoring systems.
View ProductMulti-channel Data Logger
The Modular Weather Station can be used alongside a Multi-channel Data Logger in research and field deployments where additional external data logging or integration with other sensor channels is required.
View ProductScientific Publications & Research
Publisher-hosted papers linked through DOI and publisher URLs.
FIRST-PAGE PREVIEW
Featured Publication
Greenhouse Automation Using Wireless Sensors and IoT Instruments Integrated with Artificial Intelligence
Redmond R. Shamshiri, Ibrahim A. Hameed, Kelly R. Thorp, Siva K. Balasundram, Sanaz Shafian, Mohammad Fatemieh, Muhammad Sultan, Benjamin Mahns, Saba Samiei
IntechOpen, 2021
This chapter presents wireless sensor and IoT-based approaches for greenhouse automation and real-time environmental monitoring. It describes distributed wireless sensing nodes, LoRa-based communication, cloud-connected data collection and integration of multiple sensors for monitoring greenhouse conditions. The presented architecture supports reliable environmental data acquisition and integration with intelligent automation and decision-support systems.
Publisher PageTechnical Support
Support for product selection, deployment, integration and continued operation.
Discuss your deployment
Share your application, sensing requirements, environment and expected integration scope with our engineering team.
Contact Adaptive AgroTechSupport Options
- Installation and commissioning
- Calibration and repair
- Remote diagnostics
- Training and integration
What is Modular Weather Station designed for?
A highly configurable weather monitoring unit supporting modular sensors, local data logging and flexible LoRaWAN, RS485/Modbus, SDI-12 and optional BLE communications.
Can the system be customized?
The product is offered as a configurable, quotation-based system. Final sensor, communication and integration requirements should be confirmed before ordering.
Is technical integration support available?
Yes. Remote technical support for configuration and integration is available.
Project Sales
Request a Formal Quotation
Add the required product configuration to your cart, then send the complete selection to Adaptive AgroTech sales. Custom sensors, quantities, installation, training and integration requirements can all be included.
Build your quotation from the cart
Your selected configuration and quantity will be carried into the quotation request automatically.
Open Cart & Request Quote
