PRODUCT GALLERY3 images
Image currently unavailable

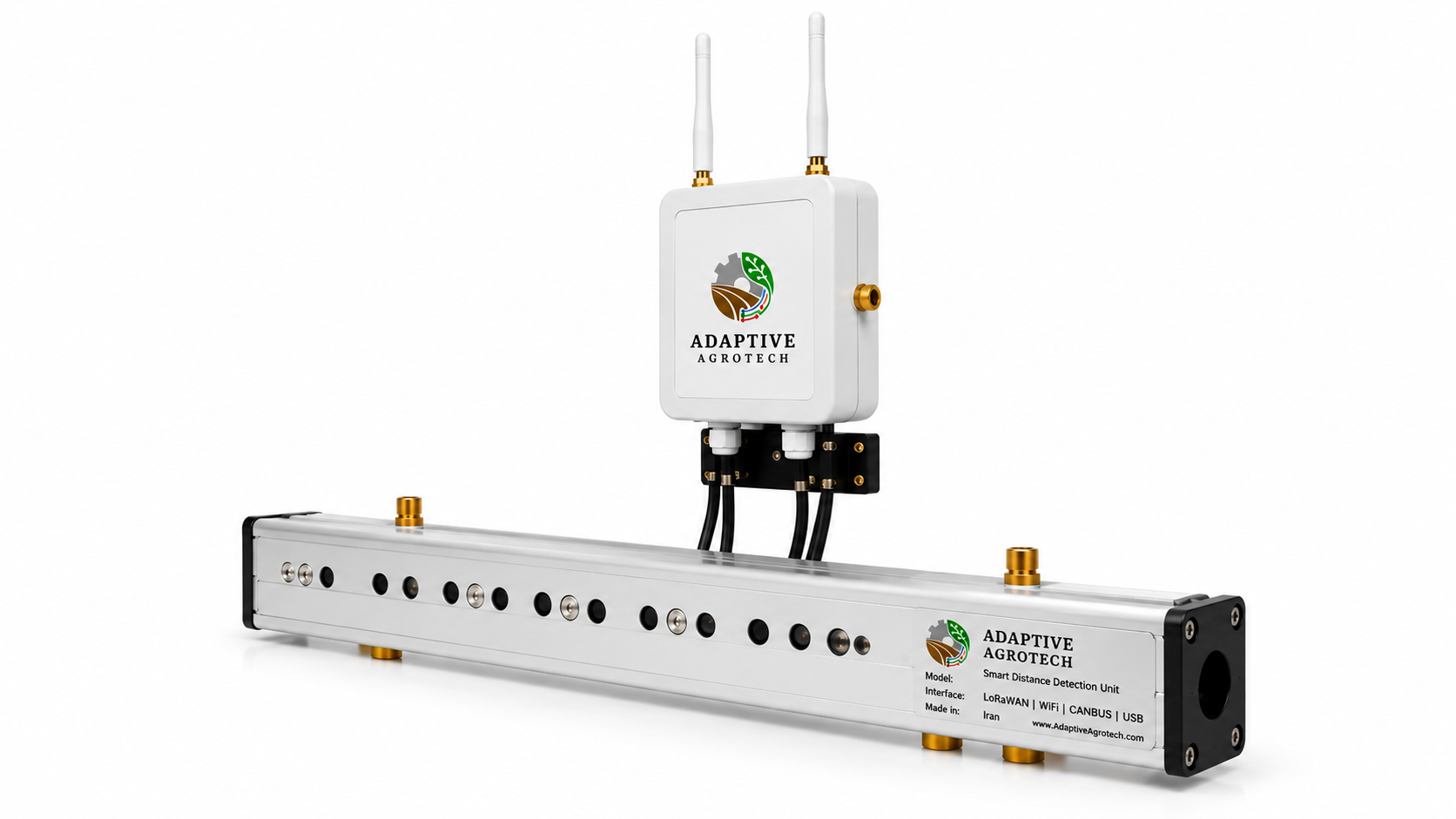

Adaptive Agrotech Smart Distance Detection and IoT Sensor System – Front View
Features & Benefits
Core capabilities and practical value for deployment.
✓
Plug-and-play multi-sensor integration
✓
LoRaWAN long-range low-power connectivity
✓
WiFi direct transmission
✓
CANBUS vehicle and machine integration
✓
USB-Serial configuration and integration
✓
Real-time data transmission
✓
Low-power and rugged design
✓
Built for harsh agricultural and industrial environments
✓
SD card data logging on supported distance detection units
Included Capabilities
Customer Benefits
Technical Specifications
Detailed technical data for evaluation and system integration.
Distance Detection Range
| Detection Range | 5–80 cm |
|---|
Connectivity
| LoRaWAN Range | Up to 15 km |
|---|---|
| WiFi Range | Up to 100 m |
| WiFi Frequency | 2.4 GHz |
| Data Rate (LoRa) | 0.3–50 kbps |
Interfaces
| Analog | Supported 0–10V / 4–20mA |
|---|---|
| Digital | Supported DI/DO |
| UART | Supported UART/TTL |
| I2C | Supported I2C |
| CAN Bus | Supported CAN |
| USB | Supported USB-Serial |
Enclosure Rating
| Protection Rating | IP65 Waterproof |
|---|---|
| Operating Temperature | -20 to +60 °C |

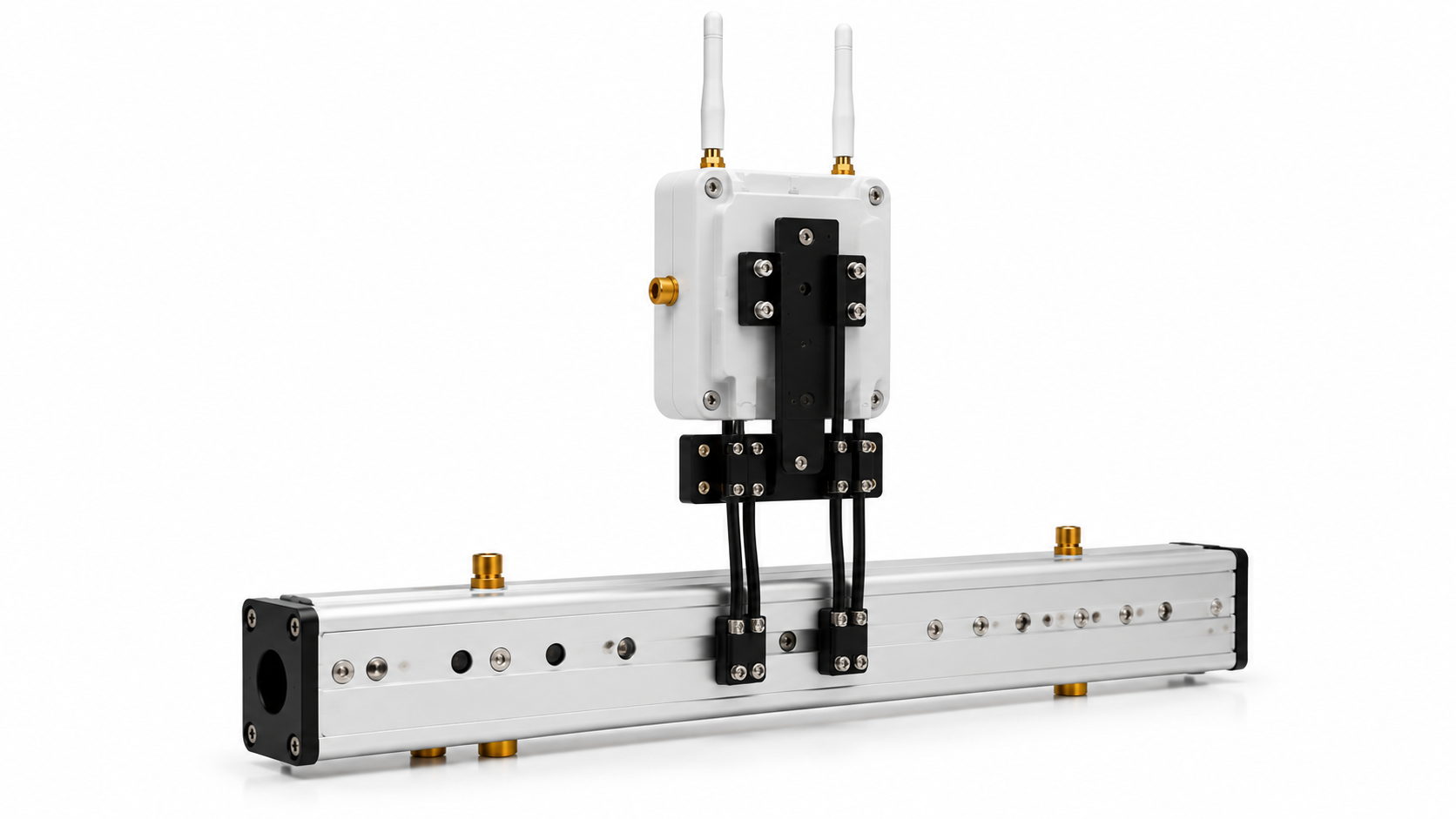

| Mounting | Pole / Wall Mount |
Data Storage
| Storage | Up to 32 GB |
|---|---|
| Storage Type | SD Card / Internal Memory |
| Data Logging | Local Data Logging |
Applications
Select an image to view the full-resolution version.
Application image currently unavailable
Precision Agriculture & Smart Farming
Distance sensing and wireless connectivity for connected agricultural machinery, field monitoring and precision farming.
Application image currently unavailable
Agricultural Robotics
Multi-channel distance measurement and steering-related sensing for autonomous and semi-autonomous agricultural machines.
Application image currently unavailable

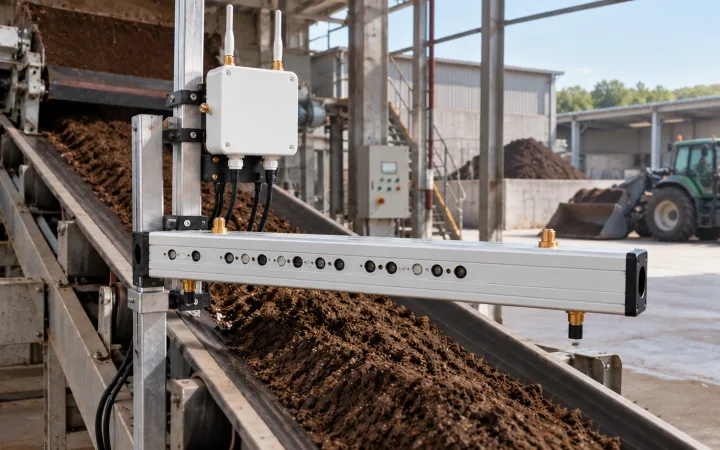

Industrial IoT & Asset Monitoring
Reliable sensor integration and real-time wireless transmission for industrial monitoring and automation.
Application image currently unavailable
Smart Greenhouses & Automation
Compact sensing solutions for automated equipment, environmental systems and connected agricultural infrastructure.
Available Configurations
Configuration-specific availability and pricing.
Standard Configuration
Standard multi-channel distance detection and IoT sensor solution.
Quotation requiredDocumentation & Downloads
Firmware Releases
Version and hardware compatibility information for supported products.
1.0.0Initial firmware release for the Smart Distance Detection & IoT Sensor Solutions platform. Supports configurable distance-sensor acquisition, sensor-channel management, LoRaWAN and WiFi connectivity, CANBUS and USB-Serial integration, local data logging, and remote device configuration.
2026-09-06Smart Distance Detection & IoT Sensor SolutionsstableSupported releaseSoftware, API & Developer Resources
Smart Distance Sensor API & Data Integration
API and integration resources for collecting, transmitting and processing distance-sensing data from Adaptive Agrotech sensor systems. Supports integration with LoRaWAN, WiFi, CANBUS and USB-Serial communication workflows for agricultural robotics, automation and IoT monitoring.
Available through technical supportCompatibility & Ecosystem
Products, accessories, gateways and software designed to work with this product.
LoRaWAN Gateway & Bridge
The Smart Distance Detection & IoT Sensor Solution can transmit distance-sensing data through LoRaWAN to an Adaptive AgroTech LoRaWAN Gateway & Bridge for long-range wireless monitoring and IoT data collection.
View ProductMulti-channel Data Logger
The Smart Distance Detection system can be integrated with a multi-channel data logging architecture for collecting and storing measurements from multiple connected distance sensors and interfaces.
View ProductMulti-Channel LoRa/WiFi Transmitter
The Multi-Channel LoRa/WiFi Transmitter can be used as part of an integrated sensing architecture for wireless transmission of sensor data through LoRa or WiFi communication networks.
View ProductScientific Publications & Research
Publisher-hosted papers linked through DOI and publisher URLs.
RESEARCH REFERENCERead the publisher-hosted paper
Featured Publication
Greenhouse Automation Using Wireless Sensors and IoT Instruments Integrated with Artificial Intelligence
Redmond R. Shamshiri, Ibrahim A. Hameed, Kelly R. Thorp, Siva K. Balasundram, Sanaz Shafian, Mohammad Fatemieh, Muhammad Sultan, Benjamin Mahns, Saba Samiei
IntechOpen, 2021
This chapter presents wireless sensor and IoT-based approaches for greenhouse automation and real-time environmental monitoring. The work describes distributed wireless sensing nodes, LoRa-based communication, cloud-connected data collection and integration of multiple sensors for monitoring greenhouse conditions. The presented IoT architecture supports reliable data acquisition and integration with intelligent automation and decision-support systems.
Publisher PageTechnical Support
Support for product selection, deployment, integration and continued operation.
Discuss your deployment
Share your application, sensing requirements, environment and expected integration scope with our engineering team.
Contact Adaptive AgroTechSupport Options
- Installation and commissioning
- Calibration and repair
- Remote diagnostics
- Training and integration
What types of distance sensors can be integrated with the system?
The system supports multiple distance-sensing technologies, including TF-mini LiDAR, ToF, ultrasonic, infrared, high-precision laser and custom probes. The appropriate sensor is selected according to the required measurement range and application.
How many sensor channels can the system support?
The system supports up to 16 configurable sensor channels, depending on the selected configuration and interface requirements.
Which communication interfaces are supported?
The system supports LoRaWAN and WiFi communication, as well as modular Analog, Digital, UART, I2C and CAN interfaces. USB-Serial and CANBUS can also be used for machine and system integration.
What is the maximum distance measurement range?
The standard multi-channel distance detection configuration supports a 5–80 cm range. Other supported sensor technologies provide different ranges, from short-range infrared and ultrasonic sensing to LiDAR and high-precision laser measurement.
Can the system be used in outdoor environments?
Yes. The system uses an IP65-rated enclosure and is designed for outdoor agricultural and industrial deployments. The specified operating temperature range is −20°C to +60°C, with surge and ESD protection and UV- and corrosion-resistant design.
Project Sales
Request a Formal Quotation
Add the required product configuration to your cart, then send the complete selection to Adaptive AgroTech sales. Custom sensors, quantities, installation, training and integration requirements can all be included.
Build your quotation from the cart
Your selected configuration and quantity will be carried into the quotation request automatically.
Open Cart & Request Quote
